Product Overview

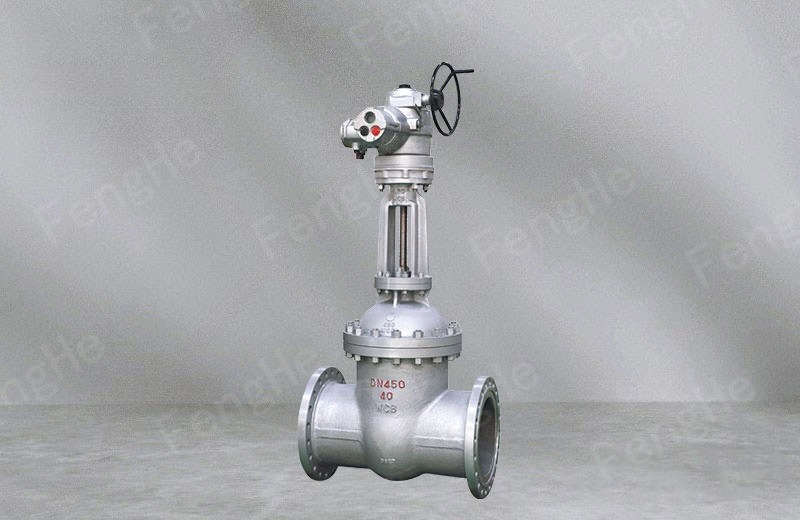

Z41H gate valve is suitable for cutting off or connecting pipeline medium under nominal pressure PN1.6~42.0MPa(CL150-CL2500), working temperature -46 ~ 600°C in petroleum, chemical industry, thermal power station and other working conditions.
Its main structural features are as follows:
- The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2, the surface welding Co base hard alloy, wear resistance, corrosion resistance, abrasion resistance, and long service life.
3, the stem after conditioning and surface nitriding treatment, has good corrosion resistance and
abrasion resistance. - The valve is equipped with reverse sealing structure, which ensures reliable sealing.
- The material, flange and butt welding end size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.
Structural Characteristics
- Low fluid resistance, small erosion and erosion of sealing surface by medium (high opening height of gate);
- Strong opening, good sealing performance, medium flow is not restricted, no disturbance, no pressure drop;
- Simple shape, good manufacturing process, wide range of application.
Execution Standard
Design specification: GB/T12234
Structure length: GB/T122
Connection flange: JB/T 79, GB/T9113, HG/T20592
Test and inspection: GB/T13927, JB/T9092
Pressure-temperature: GB/T 12224
Performance Parameter
Product model: Z941H
Product specification: DN40~800mm
Pressure grade: PN1.6~16.0
Suitable medium: water, steam, oil, nitric acid, acetic acid, etc
Applicable temperature: ≤550℃

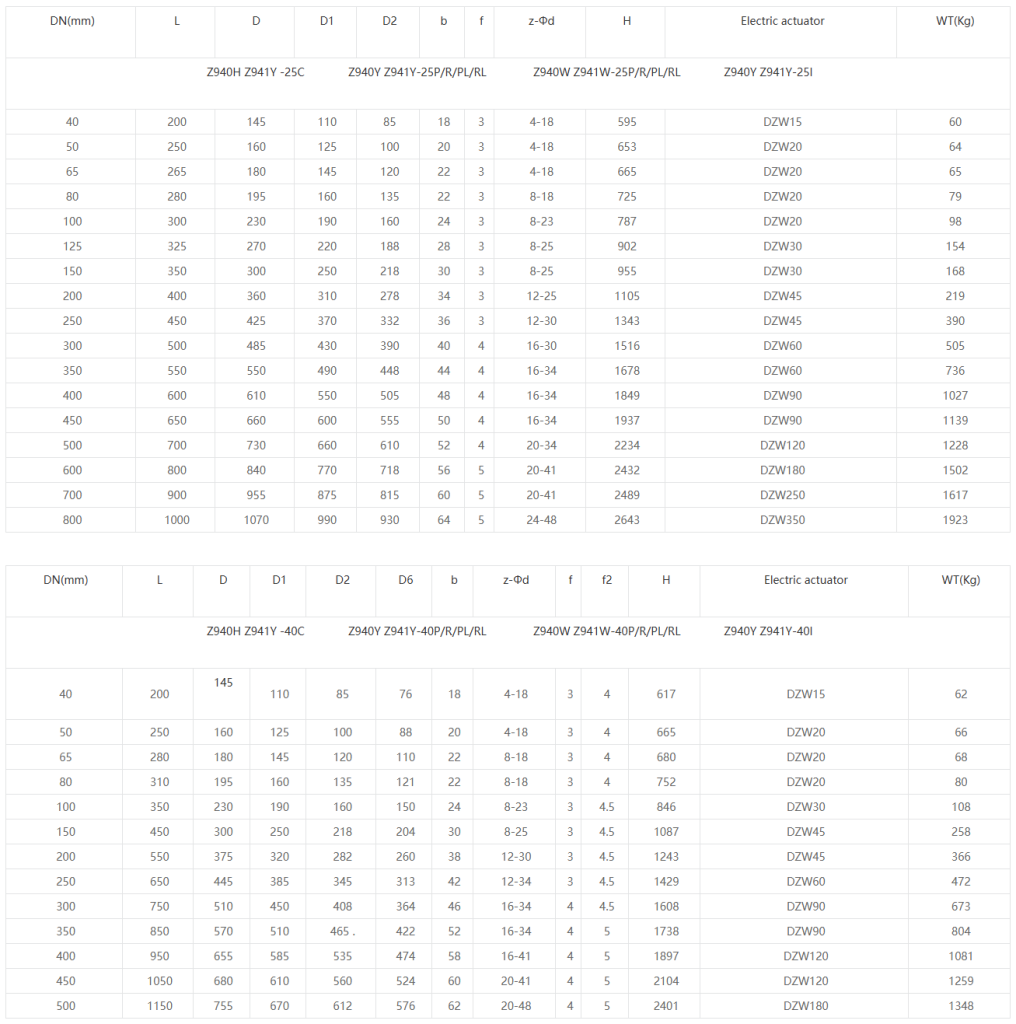

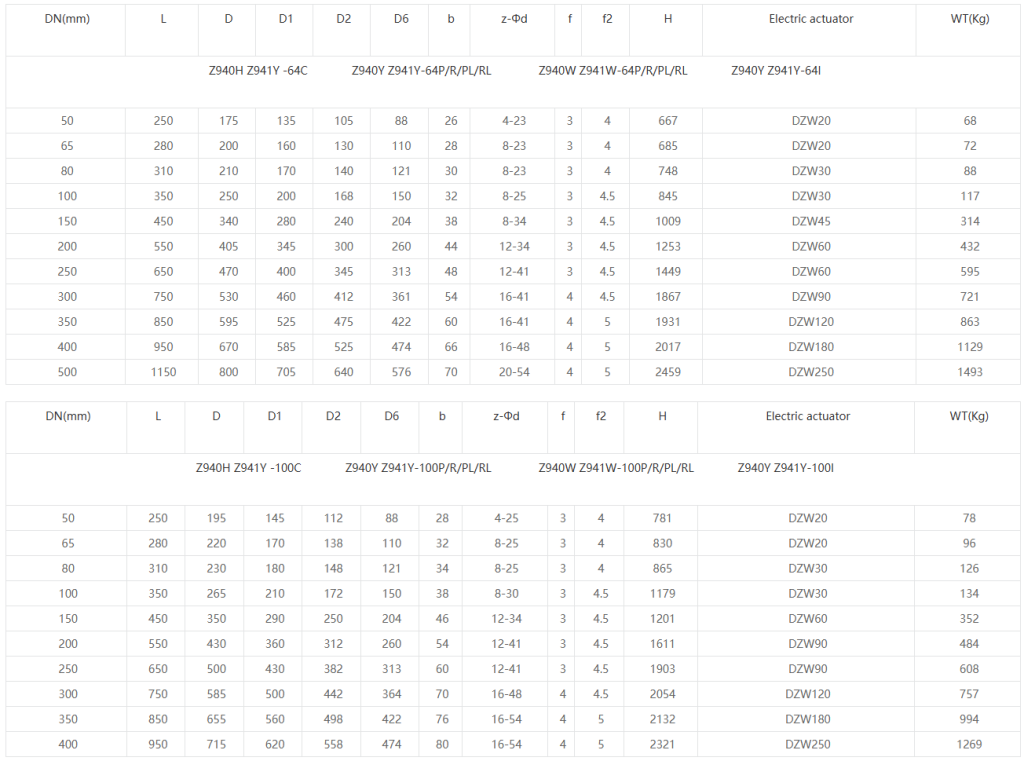

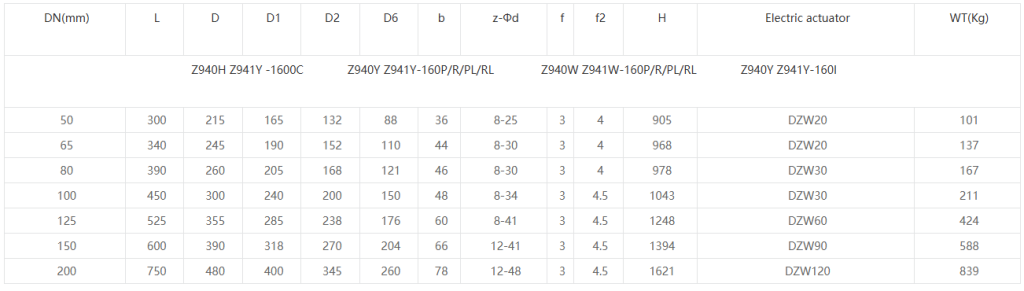

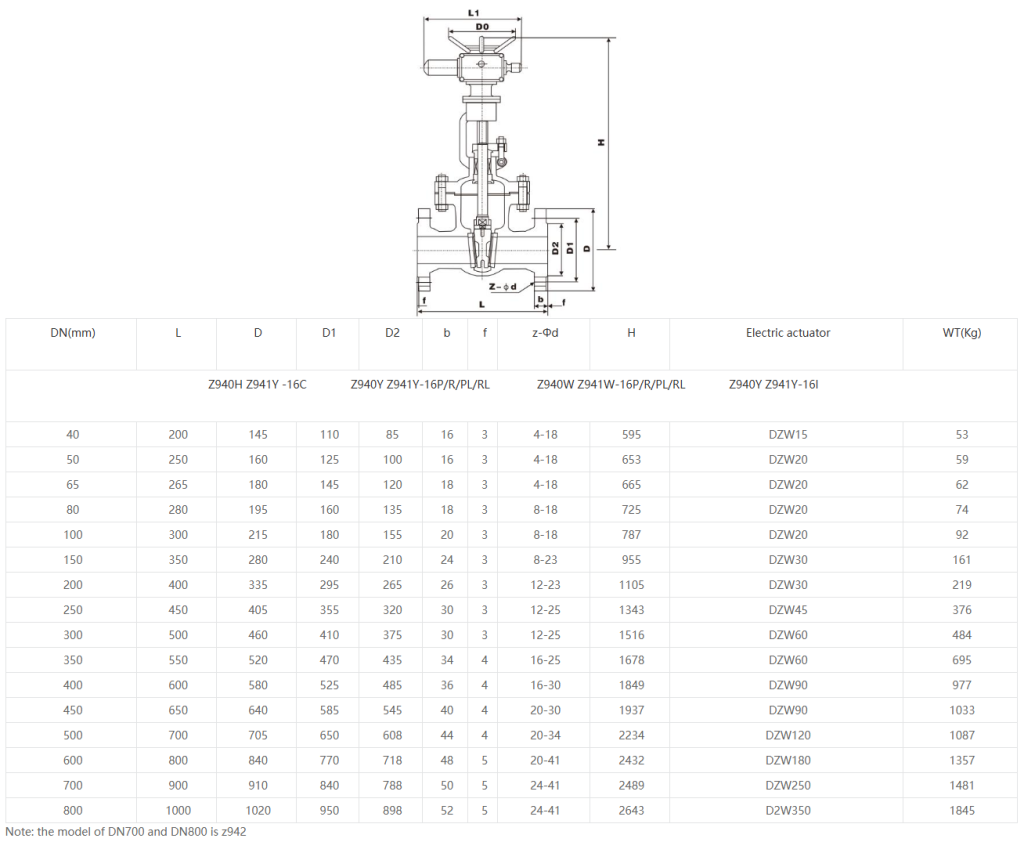

Product Dimensions
