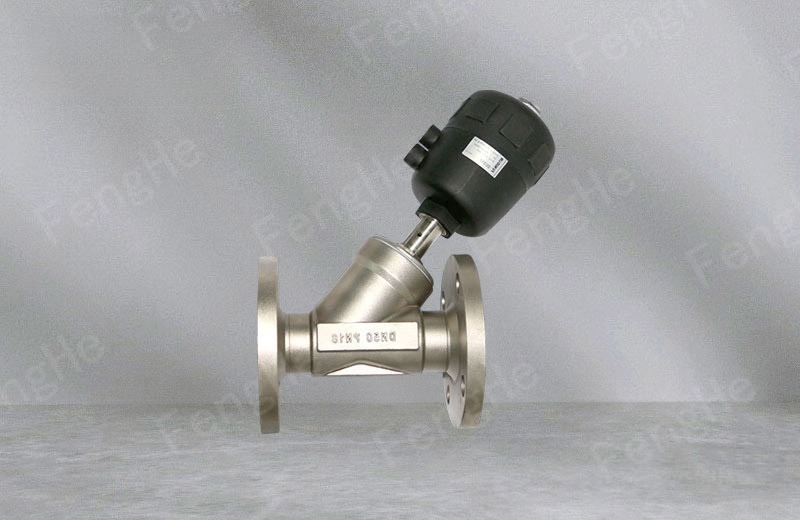

Product Overview
The sanitary flange angle seat valve has an automatic adjusting sealing gland between the overflow port and the sliding block. The angle seat structure of the valve body can realize large flow, especially when compared with the common stop valve.
Structural Characteristics
Control function: (bidirectional or unidirectional) optional types: normally open and normally closed actuator shell is suitable for ambient temperature + 5 ℃ ~ + 130 ℃ no return spring double acting actuator electronic position feedback independently adjustable travel limit, suitable for high and low flow manual emergency switch pilot valve suitable for Namur adapter
Execution Standard
Design standard: GB/T2238-1989
Flange connection size: GB/T9113.1-2000;GB/T9115.1-2000;JB78
Structure length: GB/T12221-1989
Pressure test: GB/T13927-1992;JB/T9092-1999
Performance Parameter
Nominal diameter: DN10~100mm
Pressure range: 0-16bar
Medium temperature: -10°C~+180℃
Ambient temperature: -10℃~+60℃
Body material: stainless steel
Sealing material: teflon executed
Applicable medium: neutral gas, air, water

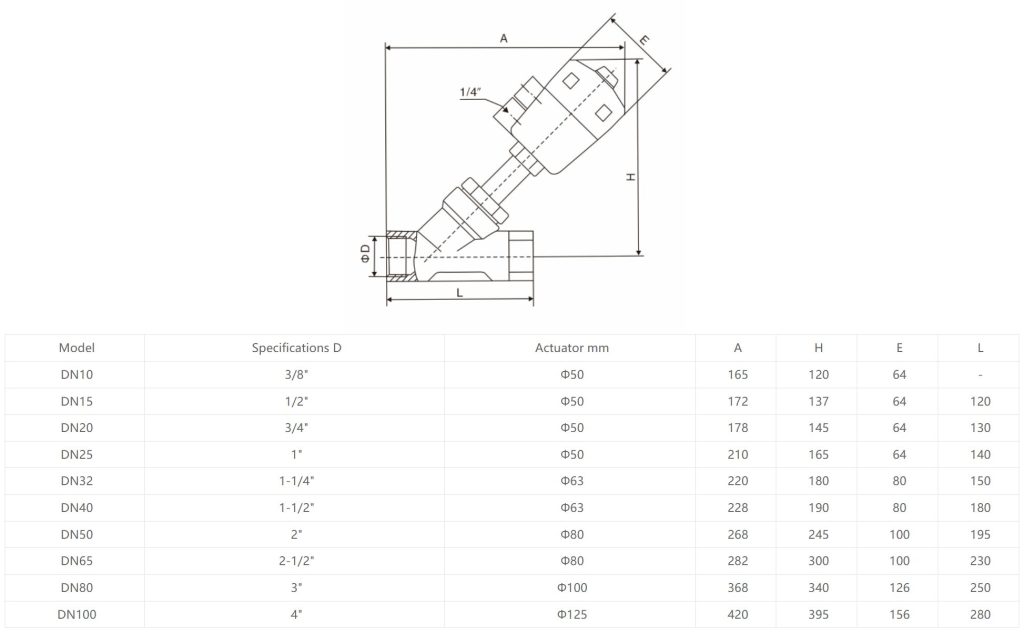

Product Dimensions
