Product Overview

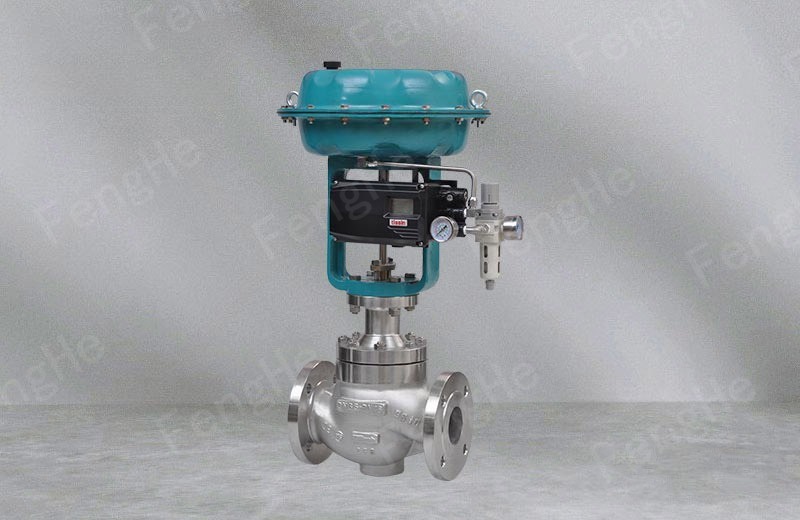

Regulating valve, with sleeve guide and balanced spool. This series of control valve is a sleeve
double seal structure, which is mainly used in the case of no leakage requirement. Because of the double sealing structure, both seals are sealed, so the temperature range of the valve is wider.
Structural Characteristics
The valve seat adopts cage type structure, which has the characteristics of strong reliability, convenient replacement and maintenance in the later stage, which solves the difficulty that the traditional non seat structure can not be replaced due to leakage, and prolongs the service life. With the design of flow opening, the medium tends to the direction of valve opening, small opening has good controllability and small flow characteristic distortion. According to the working conditions, electric or pneumatic actuators can be selected for control.
Execution Standard
Quality assurance: ISO9000
Performance Parameter
Nominal diameter: DN 15-300 mm; NPs 1 / 2 “- 12”
Nominal pressure: pn1.6 ~ 6.4Mpa; Class 150 ~ 300lb
Applicable temperature: – 196 ~ + 550 ℃ (optional according to industry and mine)
Connection type: flange, welding and thread
Main material: carbon steel

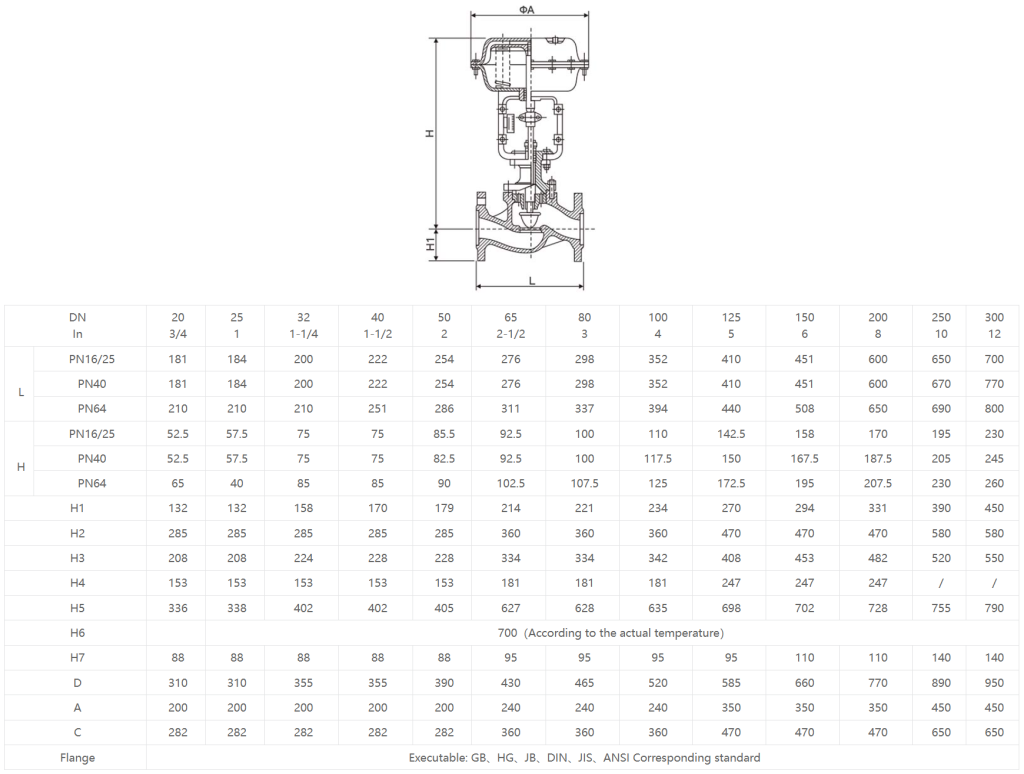

Product Dimensions
