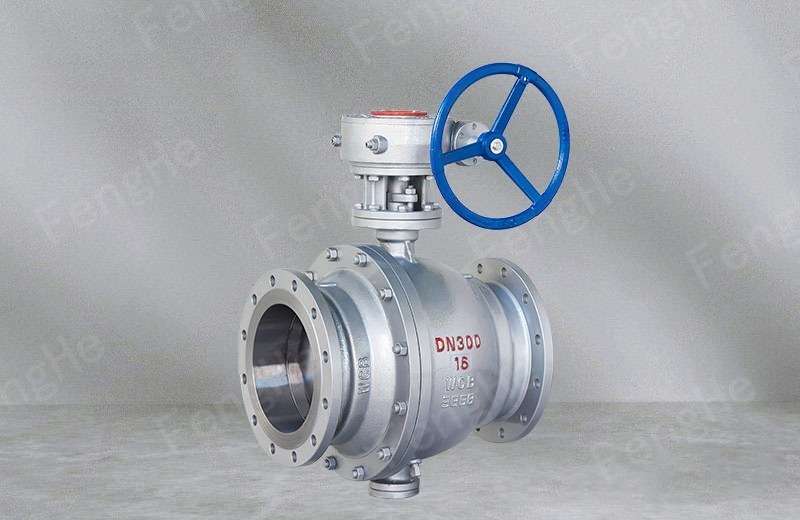

Product Overview
Ball valves are widely used in oil, gas, coal and ore mining, refining and processing and pipeline transportation systems; in chemical products, medicine and food production systems; in hydropower, thermal power and nuclear power power power production systems; in urban and industrial enterprises water supply and drainage, heating and gas supply systems; in farmland drainage and irrigation systems; in metallurgical production systems. An important mechanical product closely related to production and construction and people’s life. The ball valve is sealed in all kinds of pipeline systems and is used to cut off or connect the medium flow, so that the medium can be transported to each designated point according to the predetermined procedure.
Structural Characteristics
(1) Small fluid resistance, full size of the ball valve is basically no flow resistance.
(2) Simple structure, small volume and light weight.
(3) Compact.
It has two sealing surface, and the current ball valve sealing material using plastic, good sealing, can achieve sealing.
It has also been used in vacuum systems.
(4) Easy to operate, fast on and off, from full open to full close only rotation 90°, convenient for remote control.
(5) Easy maintenance, simple ball valve structure, sealing ring is generally active, disassembly and replacement are relatively convenient.
(6) When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the media, which will not cause the erosion of the valve sealing surface when passingthrough.
(7) Wide application, diameter from small to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
(8) Because the ball valve in the opening and closing process of wiping, so can be used in the medium with suspended solid particles.
Execution Standard
Design and manufacturing: API 6D, API 608, BS 5351, GB/T 12237
Structure length: ASME B 16.10, GB/T 12221
Connecting flange: JB/T 79.1~79.4, ASME B 16.5, HG/T 20615, HG/T 20592, JIS B2238, GB/T 9113.1~9113.4
Test and inspection: API 598, GB/T 13927, GB/T 26480, JB/T9092, ISO 5208
Performance Parameter
Main material: cast iron, cast steel, stainless steel
Nominal diameter: DN125~300mm
Nominal pressure: PN1.6~ 4.0mpa
Applicable temperature: < 80℃
Suitable medium: water, solvent, acid and natural gas, etc

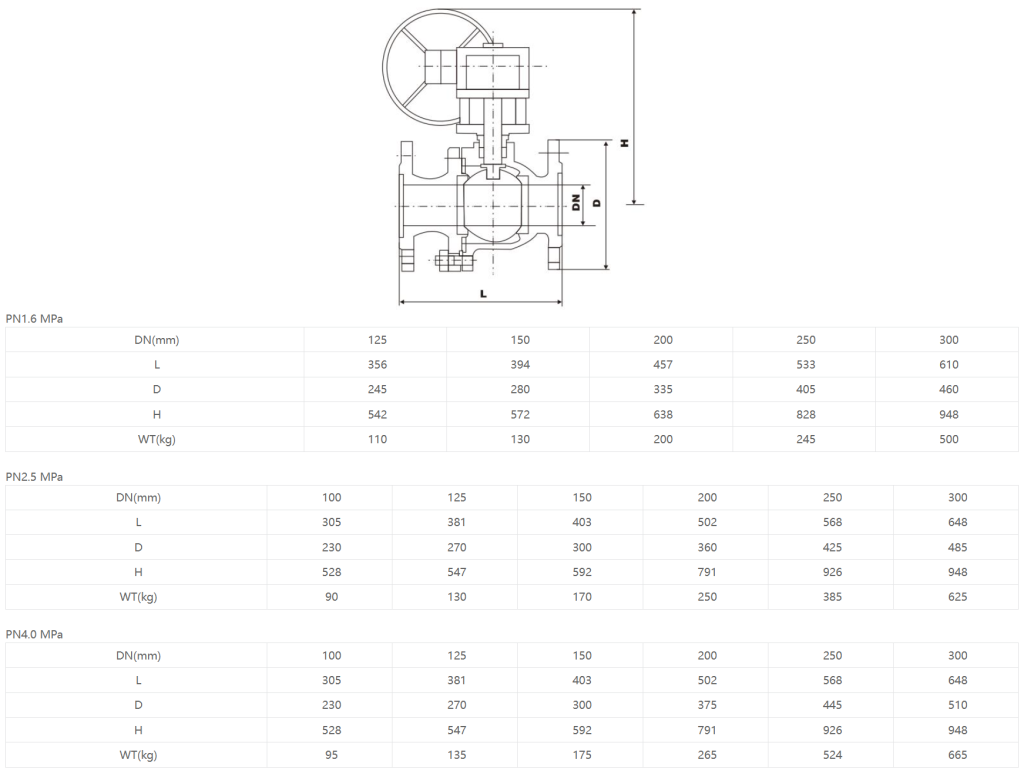

Product Dimensions
