Product Overview

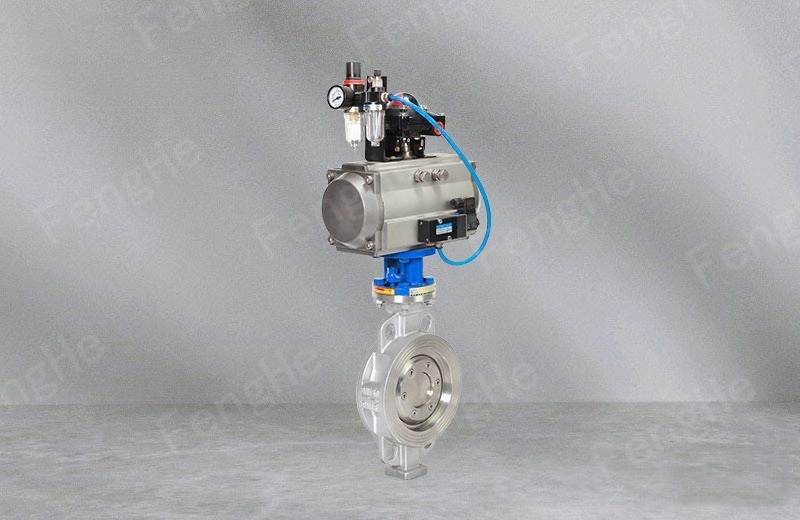

Pneumatic regulating butterfly valve series products, is a long life, energy saving butterfly valve. lts structure adopts the principle of three-dimensional braided design, the valve seat USES the hard and soft seal compatible multi-level structure, the technology is advanced, the processing is exquisite.Thisproduct is composed of valve body, butterfly plate, multi-level seat, stem, transmission mechanism and other main components.
Structural Characteristics
Because the butterfly valve of this product is designed based on the principle of three-dimensional eccentricity, the space movement track of the sealing surface is idealized, and there is no friction and interference between the sealing surfaces. In addition, the optimized configuration of the sealing materials makes the sealing performance, corrosion resistance, high temperature resistance and wear resistance of the butterfly valve be reliably guaranteed.
Its main characteristics are as follows:
- Small opening torque, flexible and convenient, labor-saving and energy-saving.
- The three-dimensional core structure makes the butterfly plate closer and tighter. Its sealing performance is reliable and no leakage is achieved.
- High pressure resistance, corrosion resistance, wear resistance, long service life, etc.
Execution Standard
Design and manufacture: GB/T 12238, JB/T8527
Flange connection: GB/T 9113, JB/T79, HG20592
Structure length: GB/T 12221
Tests and inspection: GB/T13927
Performance Parameter
Nominal diameter: DN50~2000mm
Nominal pressure: PN0.6~ 4.0mpa
Applicable temperature: Carbon steel: -29°C~425°C
Stainless steel: -40°C~600°C
Applicable medium: air, water, steam, gas, oil, acid, alkali, salt with weakly corrosive medium, etc
Main material: cast steel, stainless steel, chromium-molybdenum steel, alloy steel, duplex steel

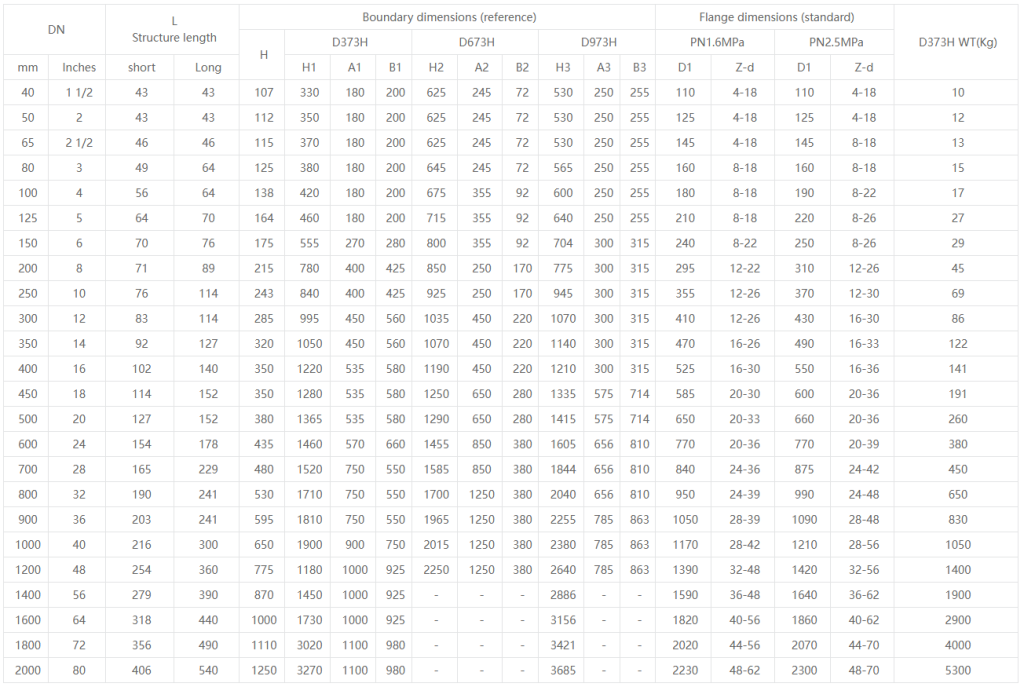

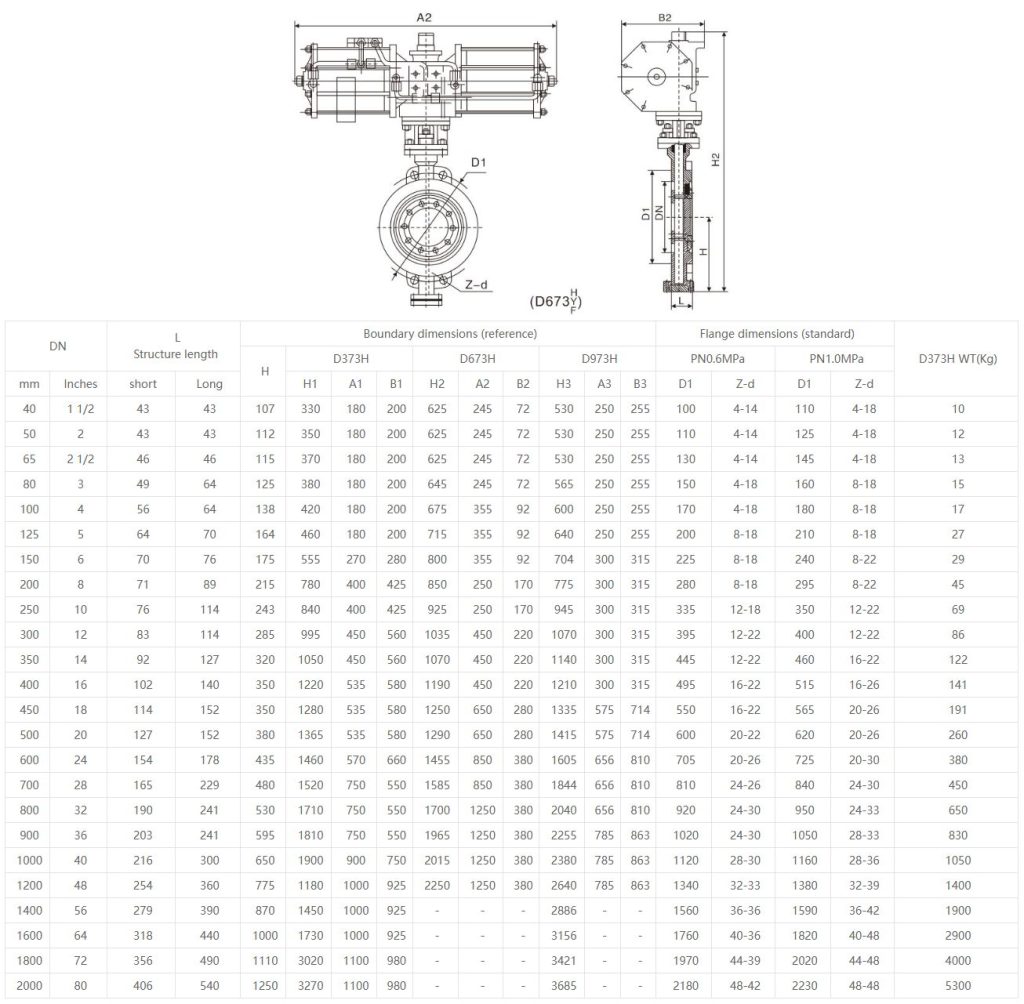

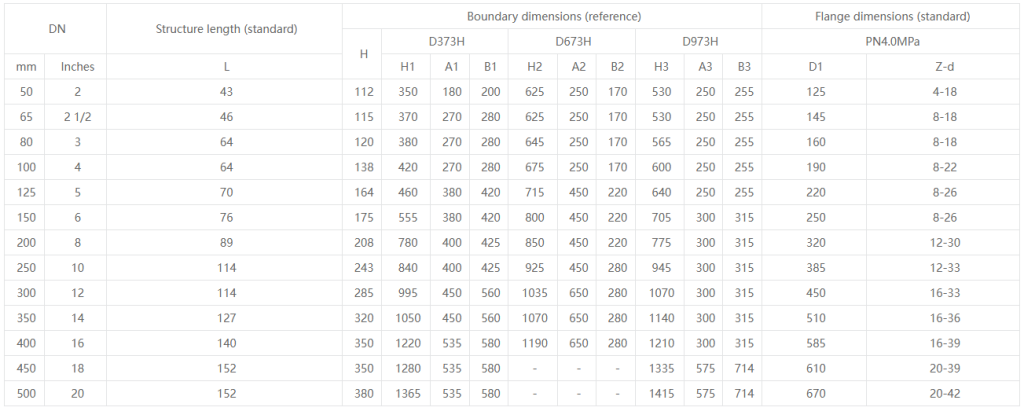

Product Dimensions
