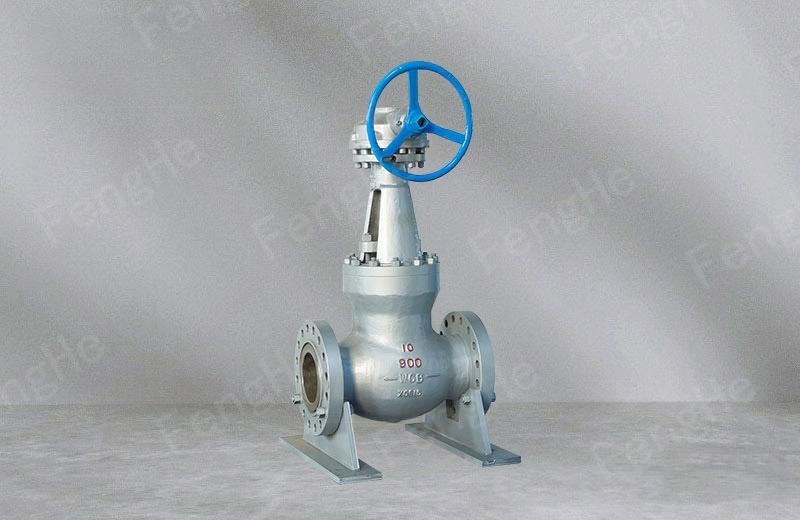

Product Overview
The high pressure globe valve is suitable for the pipeline of various systems in petroleum,
chemical, hydraulic and thermal power plants with nominal pressure of 900~2500lb and working
temperature ≤ 540 °C. The applicable media are water, oil, steam, etc. Operation mode: manual, gear
transmission, electric, etc.
Structural Characteristics
- The connection between valve and pipeline adopts flange structure.
- The pressure self tightening sealing structure is adopted in the middle chamber of the valve, and the higher the inner pressure, the better the sealing performance.
- The sealing surface of valve disc and valve seat is made of Slite Stellite cobalt base cemented carbide, which is wear-resistant, high-temperature resistant, scratch resistant and has long service life.
- Compact structure, good opening and closing, small height and convenient maintenance.
- The valve cover packing box is reasonable, the packing is added with corrosion inhibitor, the sealing is reliable and the switch is stable.
- The valve has upper sealing structure to ensure that the valve stem will not leak when the valve is opened.
Execution Standard
Design and Manufacture: ANSl B16.34, BS1873
Length of structure: ANSl B16.10
Flange size: ANSI B16.5
Pressure-temperature: ANSI B16.34
Trial-verification: APl 598
Performance Parameter
Nominal diameter: DN50~250mm
Nominal pressure: PN3.0~64MPa
Applicable temperature: ≤540℃
Suitable medium: water, steam, oil, nitric acid, acetic acid, urea
Main materials: WCB, WC1,WC6,WC9,CF3,CF8, etc

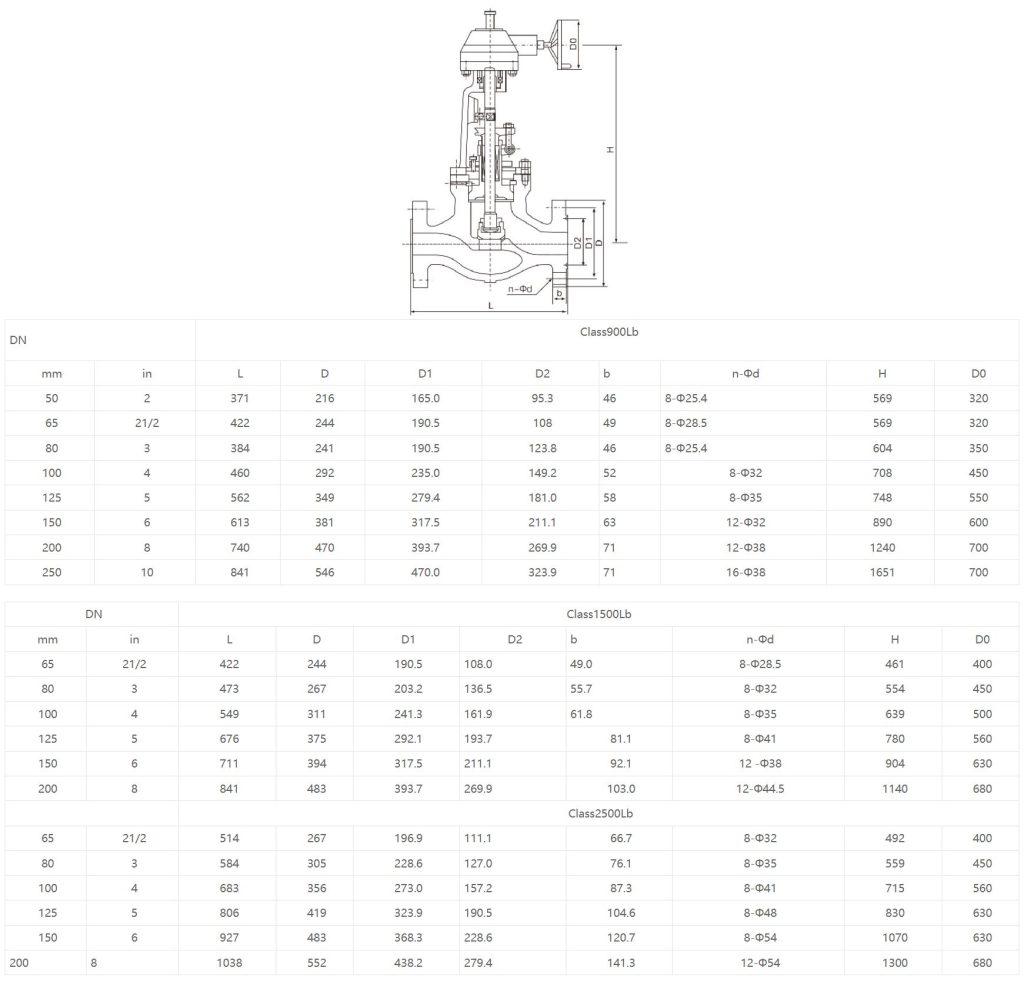

Product Dimensions
