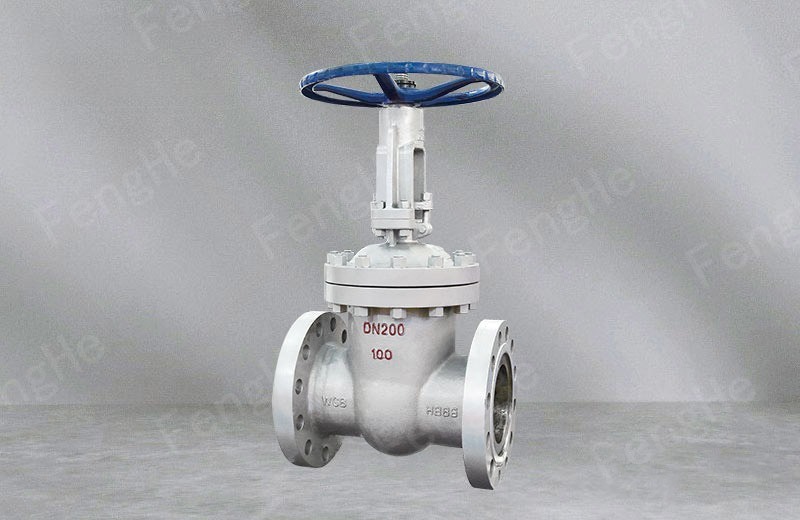

Product Overview
The high-pressure gate valve is suitable for various working conditions of petroleum, chemical and thermal power plants with nominal pressure of pn1.6 42.0mpa (cl150-cl2500) and working temperature of – 46 ~ 600 ℃.
Its main structural features are as follows
- The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
- The sealing surface is overlaid with Co based cemented carbide, which has good wear resistance, corrosion resistance, scratch resistance and long service life.
- After quenching and tempering and surface nitriding treatment, the valve stem has good corrosion
resistance and scratch resistance. - The valve is equipped with reverse sealing structure, which is reliable.
- The material and size of flange and butt welding end can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.
Structural Characteristics
- Low fluid resistance, small erosion and erosion of sealing surface by medium (high opening height of gate);
- Strong opening, good sealing performance, medium flow is not restricted, no disturbance, no pressure drop;
- Simple shape, good manufacturing process, wide range of application.
Execution Standard
Design specification :GB/T12234
Structure length: GB/T122
Connection flange: JB/T 79, GB/T9113, HG/T20592
Test and inspection: GB/T13927, JB/T9092
Pressure-temperature: GB/T 12224
Performance Parameter
Product specification: DN40~800mm
Pressure grade: PN1.6~16.0
Suitable medium: water, steam, oil, nitric acid, acetic acid, etc
Applicable temperature: ≤550℃

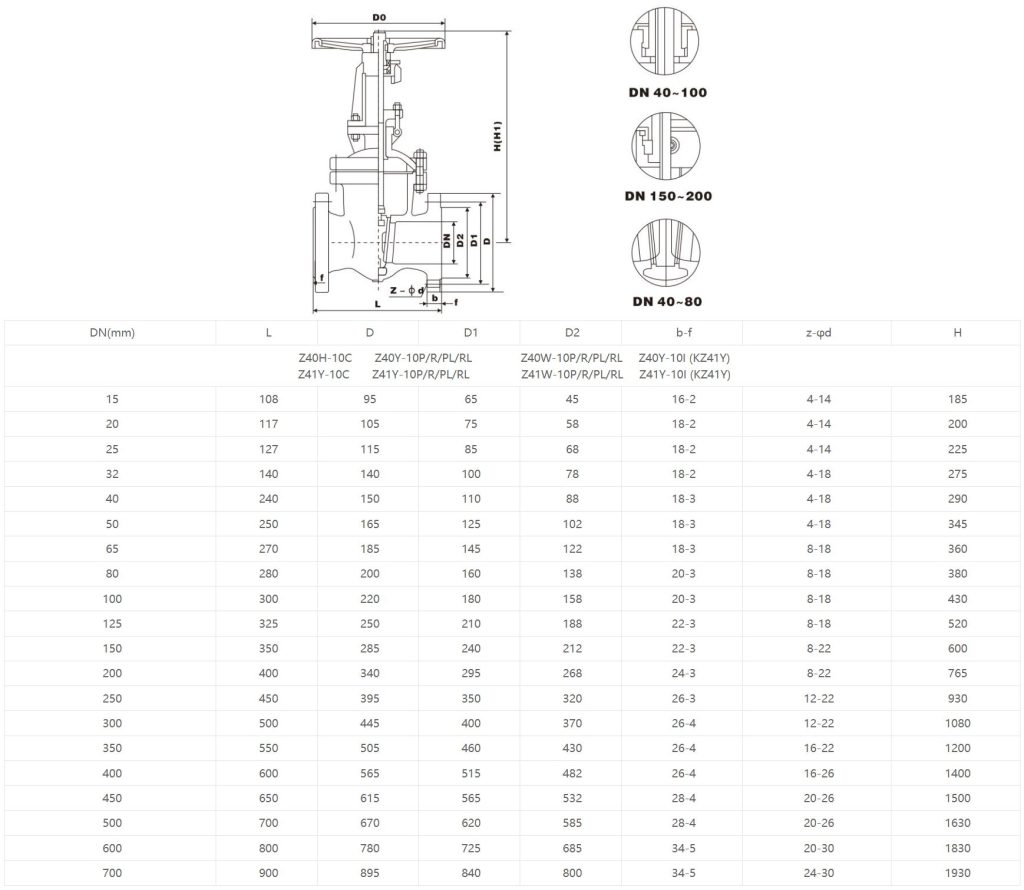

Product Dimensions
