Product Overview

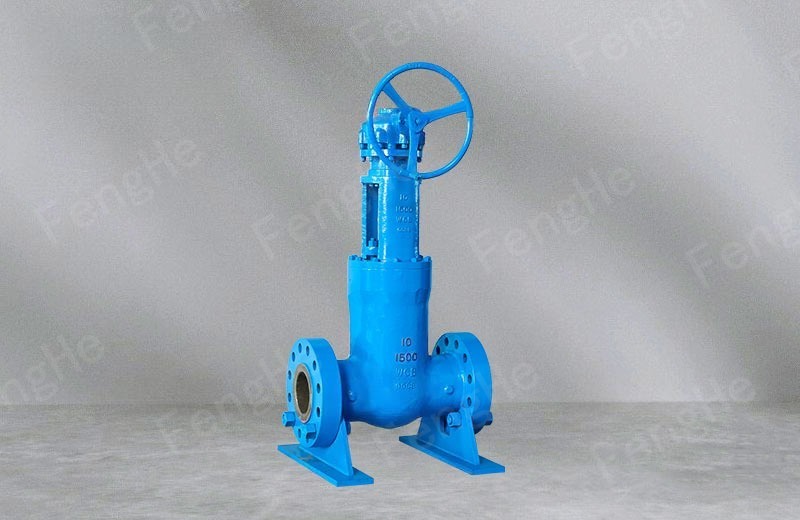

High pressure gate valve (bevel gear) is suitable for cutting off or connecting medium on pipelines of petroleum, chemical and thermal power plants with working pressure of 900-2500 LB and working
temperature of – 29-570 °C. Applicable media: water, oil, steam and other non corrosive media.
Structural Characteristics
- The valve and pipeline are connected with flanged structure.
- Fluid resistance is small, sealing surface by medium thin brush and erosion.
- The sealing surface of valve disc and valve seat is made of SLiTE, which has good abrasion resistance, high temperature resistance, good abrasion resistance and long service life.
- The flow direction of the medium is not restricted, no disturbance, no pressure reduction.
- The valve cover stuffing box reasonable, packing with corrosion inhibitor, sealing reliable, smooth switch.
- Simple shape, short structure length, good manufacturing process, wide application range.
Execution Standard
Design and Manufacturing: API 600,API6D
Structure length :ANSI B16.10,API 6D
Flange size :ANSI B16.5
Pressure-temperature :ANSl B16.34
Testing-verification :APl 598,API6D
Performance Parameter
Nominal diameter: DN50~600mm
Nominal pressure: PN3.0~64MPa
Applicable temperature: -29 ~ 570℃
Suitable medium: water, steam, oil, nitric acid, acetic acid, urea
Main materials: WCB, WC1, WC6, WC9

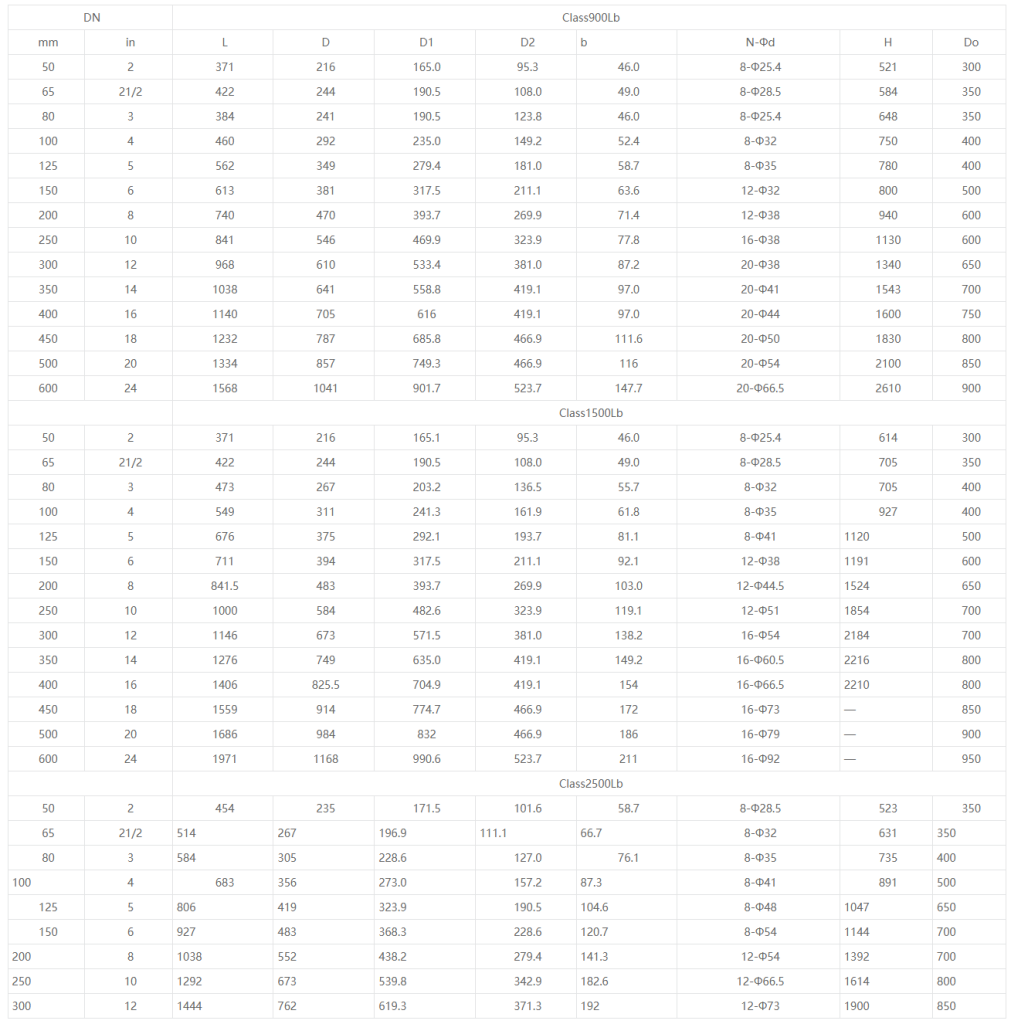

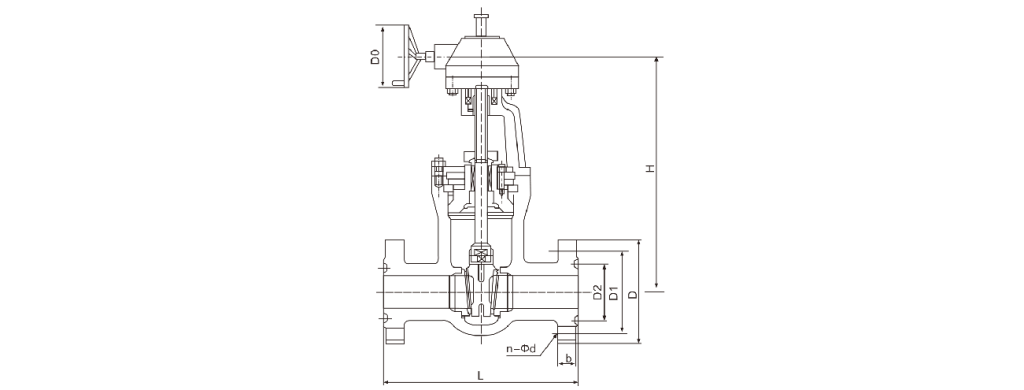

Product Dimensions
