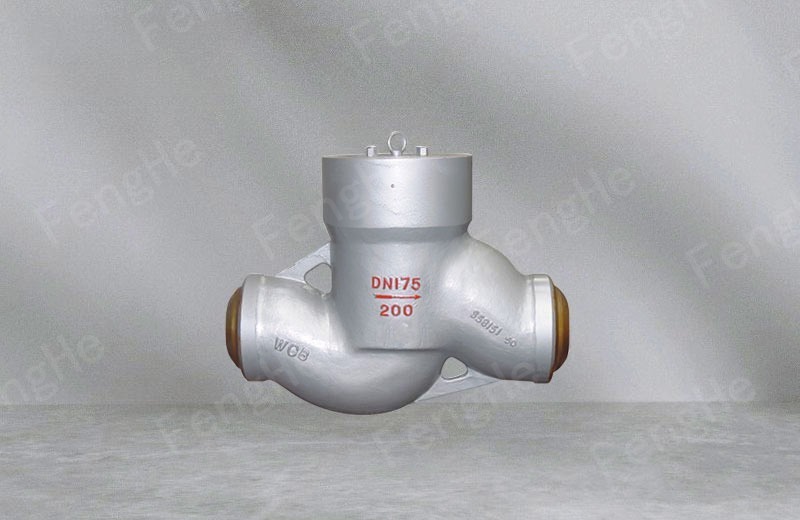

Product Overview
The check valve of power station is suitable for the pipelines of petroleum, chemical, hydraulic and thermal power plants with nominal pressure of pn20.0 ~ 32.0mpa, working temperature ≤ 540°C (including P (57) 170V and working temperature of 570℃). Suitable media are: water, oil, steam, etc. is suitable for the pipelines of petroleum, chemical, hydraulic and thermal power plants with nominal pressure of pn20.0 ~ 32.0mpa, working temperature ≤ 540°C (including P (57) 170V and working temperature of 570 °C). Suitable media are: water, oil, steam, etc.
Structural Characteristics
- The product is designed and manufactured according to E101 and JB / t3595 standards, with reasonable structure and excellent performance;
- The middle chamber of the valve adopts pressure self tightening sealing structure. The higher the medium pressure is, the better the sealing performance is;
- Both ends of the branch pipe are butt welded to meet different requirements of the nozzle;
- The sealing surface of valve disc and valve seat is made of Stellite cobalt based cemented carbide, which is wear-resistant, high-temperature resistant, scratch resistant and has long service life;
- High temperature and pressure resistant parts are made of high-quality heat-resistant alloy steel, safe and reliable, stable performance and long service life.
Execution Standard
Design Code: JB / t3595
Structural length: GB / t1221 / GB / T 15188.1
Welding interface: JB / t3595
Test and inspection: JB / T 3595
Pressure temperature: JB / T 3595
Performance Parameter
Nominal diameter: DN 10 ~ 350 mm
Pressure range: PN20 ~ 32Mpa
Applicable temperature: ≤ 570℃
Valve body material: WCB, 12Cr1MoV, wc6, wc9
Applicable media: water, oil and steam

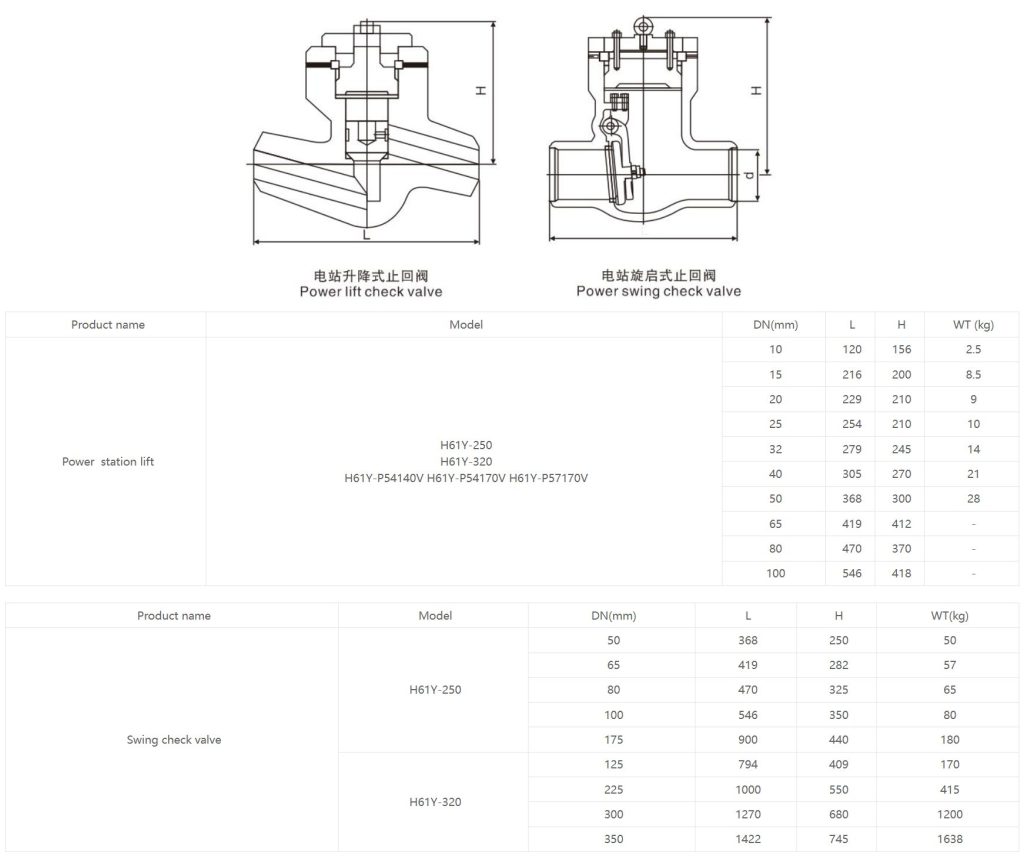

Product Dimensions
