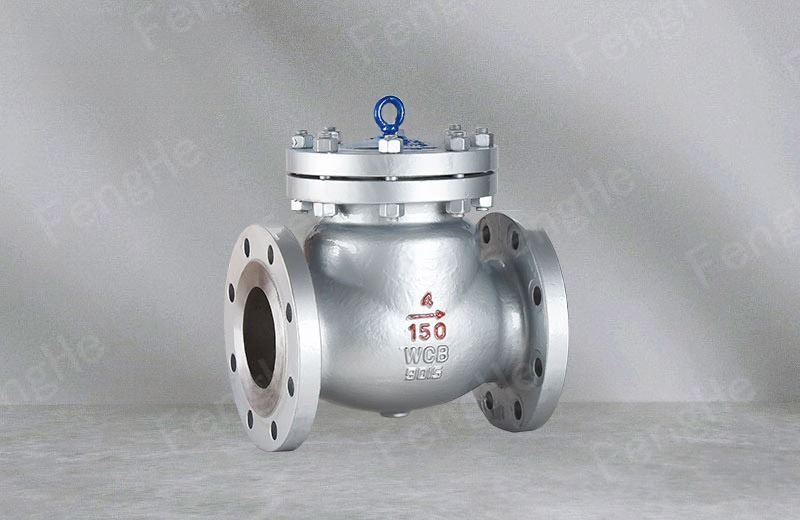

Product Overview
APl check valve is applicable to the pipeline of petroleum, chemical, pharmaceutical, chemical fertilizer, electric power industry and other working conditions with pressure class of 150 ~ 2500lb and working temperature of -46°C~570 °C to prevent the backflow of medium.
Structural Characteristics
- The product structure is reasonable, the seal is reliable, the performance is fine, the shape is beautiful;
- The sealing surface is overlaid with Co based cemented carbide, which has good wear resistance, corrosion resistance, scratch resistance and long service life;
- Built in pin shaft structure reduces leakage and is reliable to use;
- When the pressure is class15oolb, the self tightening seal is used in the middle chamber of the valve. The higher the medium pressure is, the better the sealing performance is;
- The material and size of flange and butt welding end can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.
Execution Standard
Design specification :API6D, BS1868
Structure length: ASME B16.10
Connection flange: ASME B16.5
Test and Inspection: APl598
Pressure-temperature: ASME B16.34
Performance Parameter
Nominal size: NPS 2″~30″
Pressure range: 150~2500Lb
Operating temperature: ≤600℃
Main material: WCB, WC1, WC6, WC9, etc
Suitable medium: water, steam, oil, nitric acid, acetic acid, strong oxidation, medium, urea

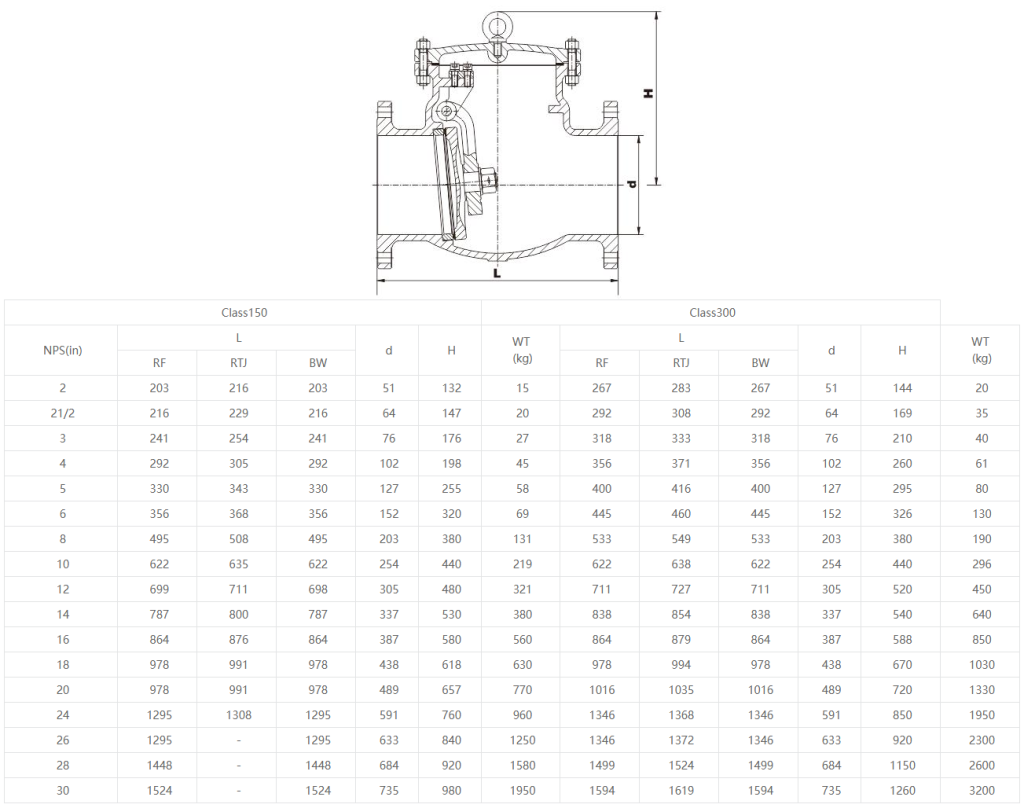

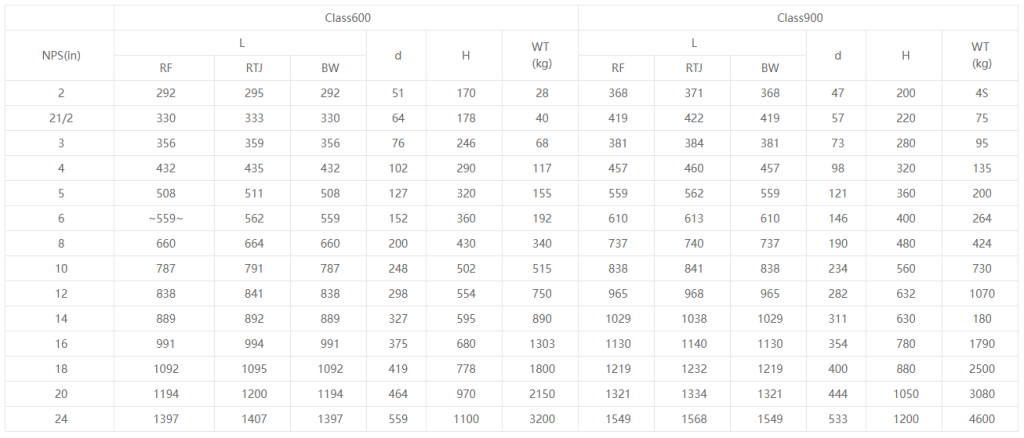

Product Dimensions
